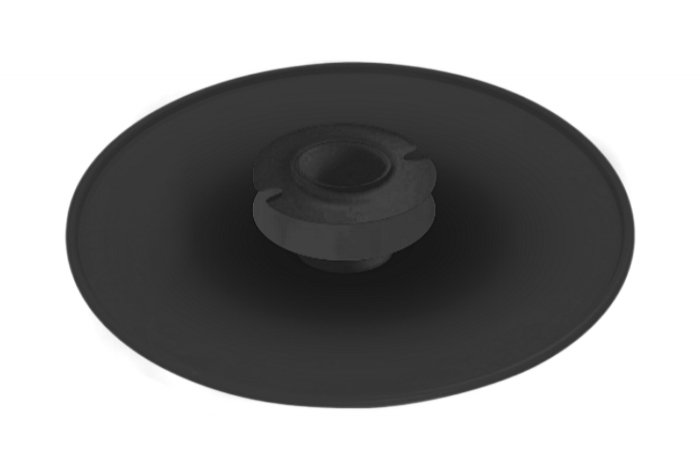

PCP100 FLANGE CAP
| DIMENSIONS | d2 (mm) | ||||||
|---|---|---|---|---|---|---|---|
| PRODUCT TYPE | NOM | A(mm) | B(mm) | C(mm) | Min. | Max. | CODE |
|
FLANGE CAP
|
1/2" DN15
|
21,3
|
7
|
90
|
9
|
16
|
PCP100-1/2"
|
|
FLANGE CAP
|
3/4" DN20
|
26,7
|
11,9
|
100
|
14
|
25
|
PCP100-3/4"
|
|
FLANGE CAP
|
1" DN25
|
33,4
|
16,5
|
110
|
19
|
31
|
PCP100-1"
|
|
FLANGE CAP
|
1 1/4 DN32
|
42,2
|
22
|
136
|
24
|
40
|
PCP100-1 1/4"
|
|
FLANGE CAP
|
1 1/2 DN40
|
48,3
|
28,8
|
146
|
31
|
46
|
PCP100-1 1/2"
|
|
FLANGE CAP
|
2" DN50
|
60,3
|
37,7
|
160
|
40
|
58
|
PCP100-2"
|
|
FLANGE CAP
|
2 1/2 DN65
|
73
|
48,5
|
180
|
51
|
71
|
PCP100-2 1/2"
|
|
FLANGE CAP
|
3" DN80
|
88,9
|
60,5
|
196
|
63
|
87
|
PCP100-3"
|
|
FLANGE CAP
|
4" DN100
|
114,3
|
80
|
216
|
82
|
112
|
PCP100-4"
|
|
FLANGE CAP
|
5" DN125
|
135
|
102
|
246
|
104
|
133
|
PCP100-5"
|
|
FLANGE CAP
|
6" DN150
|
168,3
|
127,5
|
280
|
153
|
166
|
PCP100-6"
|
|
FLANGE CAP
|
8" DN200
|
219,1
|
184
|
336
|
186
|
217
|
PCP100-8"
|
|
FLANGE CAP
|
10" DN250
|
273
|
229
|
378
|
231
|
271
|
PCP100-10"
|
|
FLANGE CAP
|
12" DN300
|
323,8
|
282
|
450
|
284
|
322
|
PCP100-12"
|
|
FLANGE CAP
|
14" DN350
|
355,6
|
309
|
500
|
311
|
353
|
PCP100-14"
|
|
FLANGE CAP
|
16" DN400
|
406,4
|
383
|
550
|
384
|
404
|
PCP100.16"
|
